UPAN “Well Done” stepper motor controller technical characteristics:
- UPAN stepper motor controller
- Stepper motor driver
- Power Supply 36V 5A
- All type of Nema stepper motors.
- Output current, from 1.4 A to 5.0 A
- Microstep from full-step to 25000 steps/rev
- Touchscreen display 3,2″
- End switch NC switch for hardware limits
- Inputs for 2 external button or triggers
- Inputs 120/230 V AC
- Dimensions: 135 mm(L) x 145 mm (H) x 276 mm (D)
- Weight: 1240 gr
Versatile motor control:
The Axis Controller UPAN is designed to control a wide range of stepper motors, from small ones used in 3D printers to large industrial motors.

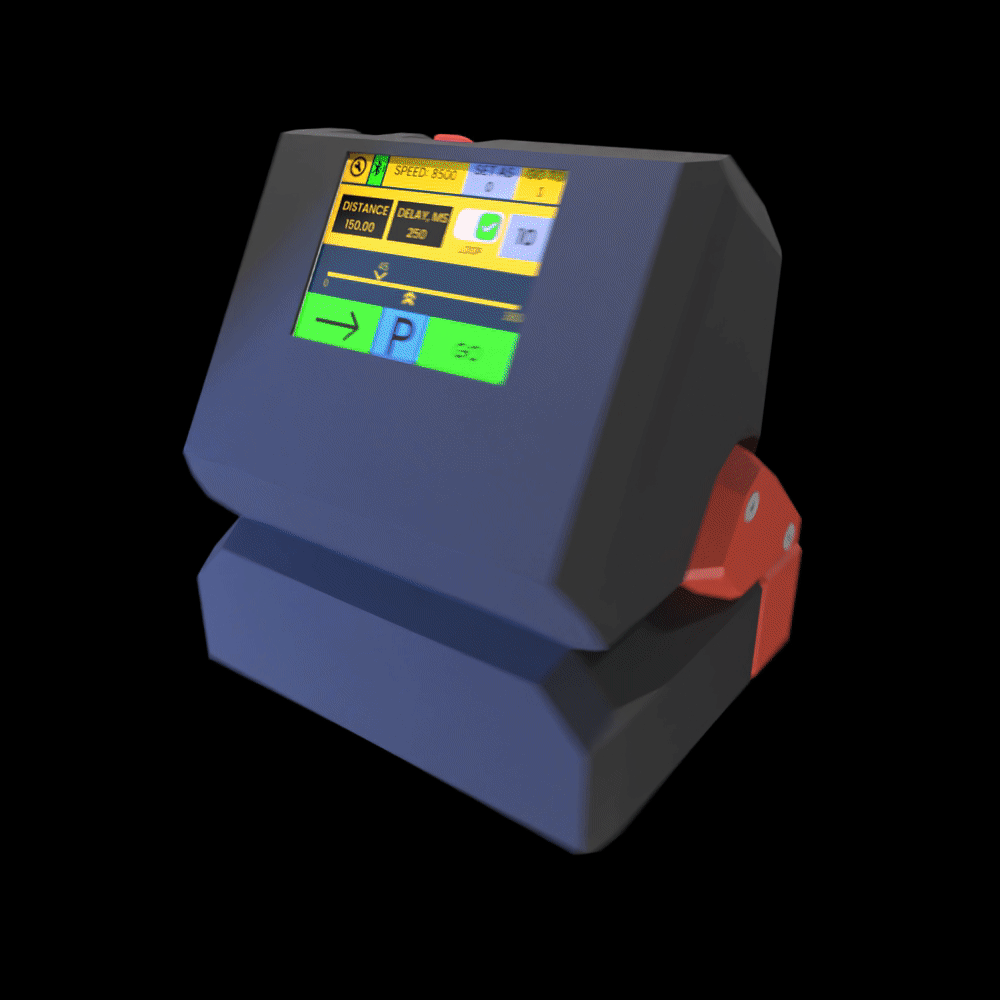

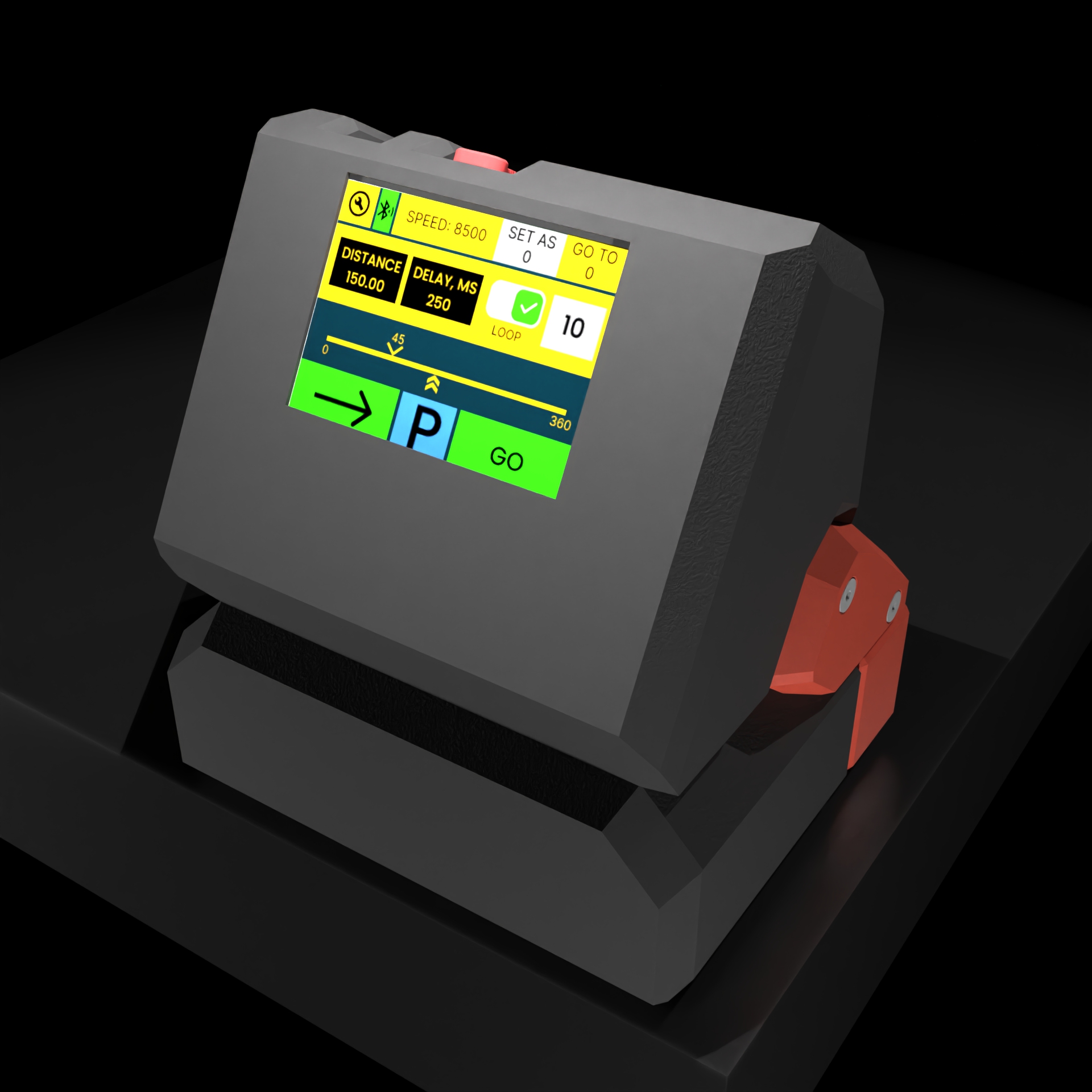

User-friendly touchscreen interface:
The controller features a large and intuitive touch screen interface, designed with the user in mind. The interface provides easy access to all motor control functions and configuration options. The touch screen display allows for precise control over motor movement, with real-time feedback on motor speed, position, and direction. The interface is easy to navigate, with clearly labeled buttons and icons, making it easy to set up and configure the controller for any motor application. Whether you are a beginner or an experienced user, our user-friendly interface makes controlling your motor a breeze.

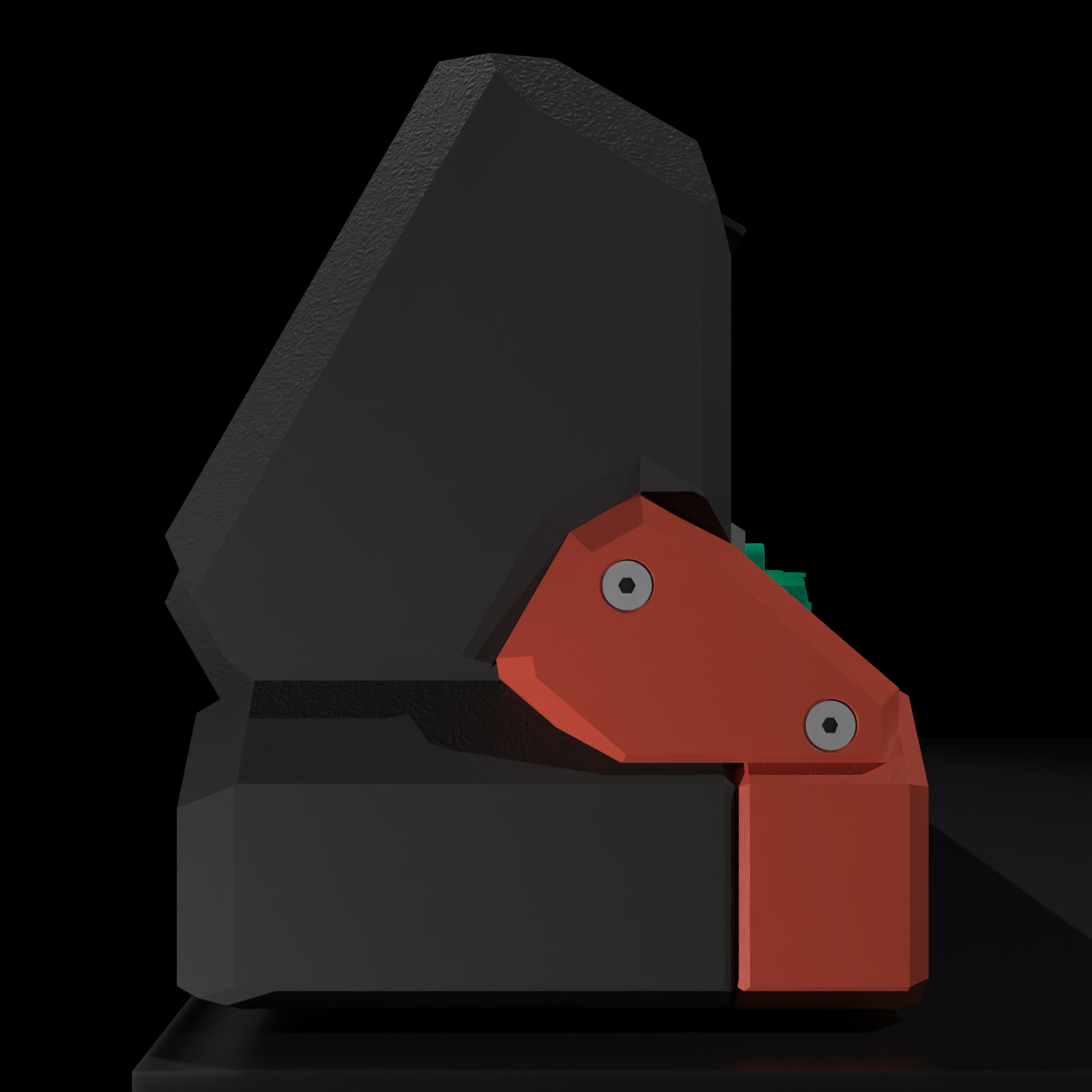

Compact and durable:
The Axis Controller UPAN is designed to be both compact and durable, making it a reliable solution for a wide range of motor control applications. Whether you need to control small stepper motors for your 3D printer or larger industrial motors, the Axis Controller UPAN is up to the task. Its rugged design means it can handle demanding environments and challenging conditions, so you can rely on it to keep your motors running smoothly and efficiently. And with its compact size, it’s easy to mount and install, even in tight spaces.
